SparkFun Qwiic 3-Axis Accelerometer (ADXL313) Hookup Guide

Pages
Favorited Favorite 0

Introduction

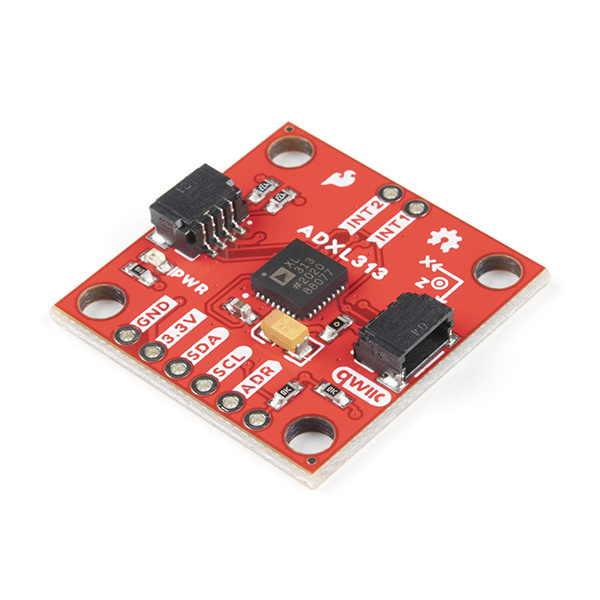

The SparkFun 3-Axis Digital Accelerometer Breakout - ADXL313 (Qwiic) is a Qwiic sensor that utilizes the ADXL313 accelerometer from Analog Devices. The ADXL313 is a low cost, low power, up to 13-bit resolution, 3-axis accelerometer with a 32-level FIFO stack capable of measuring up to ±4g.

SparkFun Triple Axis Digital Accelerometer Breakout - ADXL313 (Qwiic)

SparkFun Triple Axis Digital Accelerometer Breakout - ADXL313 (Qwiic)

SEN-17241
$14.95

The ADXL313 can be used in applications like car alarms, hill start aid (HSA) systems, electronic parking brakes, and (black box) data recorders. Some of the specific features of the ADXL313 include:

  • Embedded, patent pending FIFO technology minimizes host processor load
  • Low noise performance
  • Fixed 10-bit resolution for any g-range
  • 10,000g survival rating
  • Two configurable interrupt pins
    • Including, built-in motion detection functions for activity/inactivity monitoring
  • Self-test capability

Required Materials

The Qwiic 3-Axis Accelerometer does need a few additional items for you to get started. The RedBoard Qwiic will be used for the Arduino examples. A single board computer and the Qwiic pHAT are required for the Python examples (see note below). You may already have a few of these items, including the required Qwiic cable, so feel free to modify your cart based on your needs. Additionally, there are also options that are available as well (click button below to toggle options).
