SparkFun expLoRaBLE Hookup Guide

Pages
Contributors: QCPete, santaimpersonator
Favorited Favorite 4

Introduction

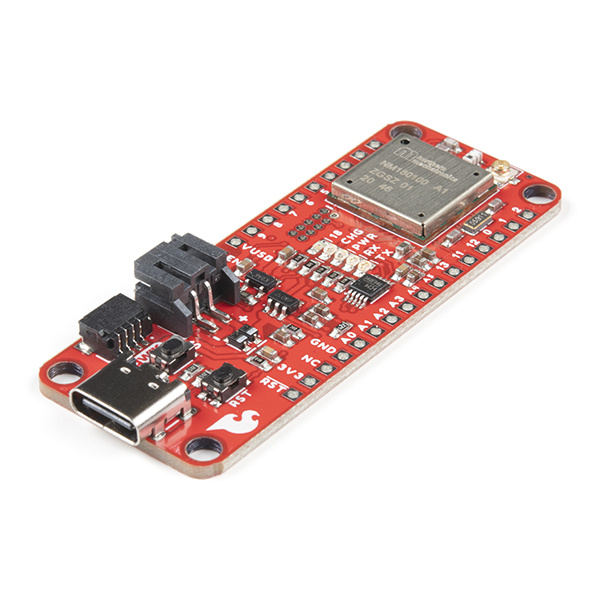

The SparkFun LoRa Thing Plus – expLoRaBLE is a feather form-factor development board with the NM180100 system in package (SiP), from Northern Mechatronics. The NM180100 SiP includes a Semtech SX1262 LoRa module paired with the Apollo3 MCU, which is used in the SparkFun Artemis module. This provides the board with compatibility in the Arduino IDE, through our Apollo3 Arduino core. The Semtech SX1262 is a long range, low power RF tranceiver introduces LoRaWAN capabilities to the board. Additionally, both the BLE and LoRa capabilities of the expLoRaBLE allow it to operate as a Bluetooth enabled LoRa node.
