Introduction

Note: This tutorial is for the Qwiic Starter Kit for Rasberry Pi V2. For users with the Qwiic Starter Kit for Raspberry Pi V1, make sure to check out the older tutorial.

Welcome to the Qwiic Kit for Raspberry Pi V2 hookup guide. Here we are going to get started with some of the basics surrounding I2C and Python on your Raspberry Pi. Don't worry, we've done most of the work with the Python Libraries we've written for the boards in our Qwiic Kit. This kit should help you get started whether you just want to get data and display it on your Pi, display it on our OLED screen, or post it to the Internet.

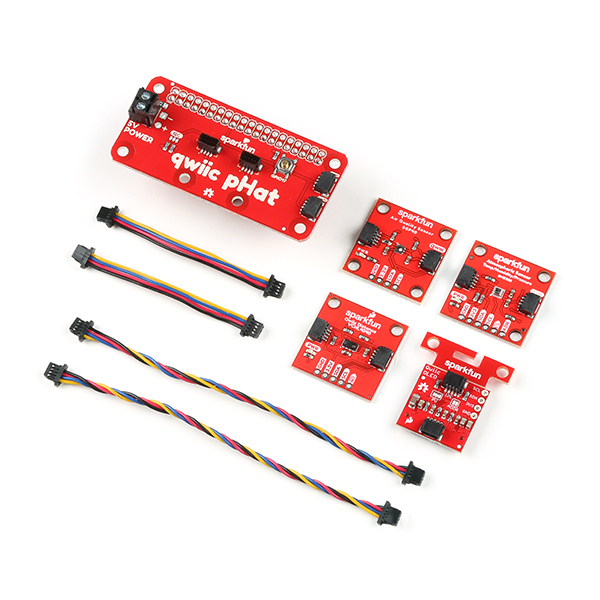

SparkFun Qwiic Starter Kit for Raspberry Pi

SparkFun Qwiic Starter Kit for Raspberry Pi

KIT-21285
$59.95

Required Materials

To follow along with this tutorial, you will also need a few pieces of hardware listed in the wishlist. You may not need everything though depending on what you have. Add it to your cart, read through the guide, and adjust the cart as necessary.

Raspberry Pi

Single board computers with the Raspberry Pi 40-pin GPIO header will work. We'll be using a Raspberry Pi throughout this tutorial. If you have not worked with a Raspberry Pi, we recommend getting started with the Raspberry Pi desktop or starter kit. Below are a few options from the catalog.

Raspberry Pi 4 Model B (4 GB)

Raspberry Pi 4 Model B (4 GB)

DEV-15447
$55.00
21
SparkFun Raspberry Pi 4 Basic Kit - 4GB

SparkFun Raspberry Pi 4 Basic Kit - 4GB

KIT-16384
$96.50
8
SparkFun Raspberry Pi 4 Hardware Starter Kit - 4GB

SparkFun Raspberry Pi 4 Hardware Starter Kit - 4GB

KIT-16388
$171.50
1
SparkFun Raspberry Pi 4 Desktop Kit - 4GB

SparkFun Raspberry Pi 4 Desktop Kit - 4GB

KIT-16386
$171.50

Optional Materials

You have several options when it comes to working with the Raspberry Pi. Most commonly, the Pi is used as a standalone computer, which requires a monitor, keyboard, and mouse (listed below). To save on costs, the Pi can also be used as a headless computer (without a monitor, keyboard, and mouse). This setup has a slightly more difficult learning curve, as you will need to use the command-line interface (CLI) from another computer.

Raspberry Pi LCD - 7" Touchscreen

Raspberry Pi LCD - 7" Touchscreen

LCD-13733
$60.00
55
Logitech K400 Plus Wireless Touch Keyboard

Logitech K400 Plus Wireless Touch Keyboard

WIG-16300
$42.95
Multimedia Wireless Keyboard

Multimedia Wireless Keyboard

WIG-14271
$29.95 $19.95
5

Suggested Reading

Before you get started, I recommend taking a look at some of our other tutorials and familiarizing yourself with some of these topics. We will end up working with the Raspberry Pi, Python programming language, and MQTT protocol to send data over the Internet.

SD Cards and Writing Images

How to upload images to an SD card for Raspberry Pi, PCDuino, or your favorite SBC.

Python Programming Tutorial: Getting Started with the Raspberry Pi

This guide will show you how to write programs on your Raspberry Pi using Python to control hardware.

Introduction to MQTT

An introduction to MQTT, one of the main communication protocols used with the Internet of Things (IoT).

Qwiic pHAT for Raspberry Pi Hookup Guide

Get started interfacing your Qwiic enabled boards with your Raspberry Pi. The Qwiic pHAT connects the I2C bus (GND, 3.3V, SDA, and SCL) on your Raspberry Pi to an array of Qwiic connectors.
