ESP32-S2 Thing Plus Hookup Guide

Pages
Favorited Favorite 0

Introduction

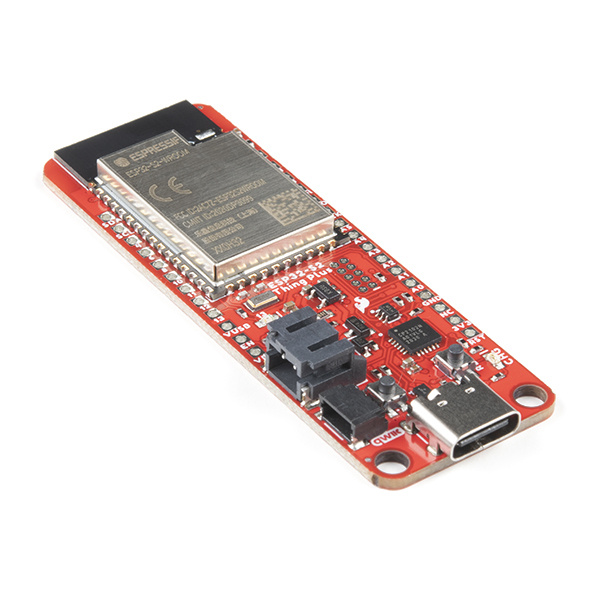

The ESP32-S2 Thing Plus is a feather form-factor development board with the improved ESP32-S2 module, from Espressif. The new ESP32-S2 module addresses the security flaws in the original ESP32. While the ESP32-S2 does include improved security features, it lacks the Bluetooth capabilities of the original ESP32 module.

SparkFun Thing Plus - ESP32-S2 WROOM

SparkFun Thing Plus - ESP32-S2 WROOM

WRL-17743
$19.95

Required Materials

To get started, users will need a few items. Now some users may have a few of these items, feel free to modify your cart accordingly.
