Qwiic 12-Bit ADC Hookup Guide

Pages
Contributors: QCPete, santaimpersonator
Favorited Favorite 3

Introduction

An analog to digital converter (ADC) is very useful tool for converting an analog voltage to a digital signal that can be read by a microcontroller. The ability to converting from analog to digital interfaces allows users to use electronics to interface to interact with the physical world.

SparkFun Qwiic 12 Bit ADC - 4 Channel (ADS1015)

SparkFun Qwiic 12 Bit ADC - 4 Channel (ADS1015)

DEV-15334
$11.50
1

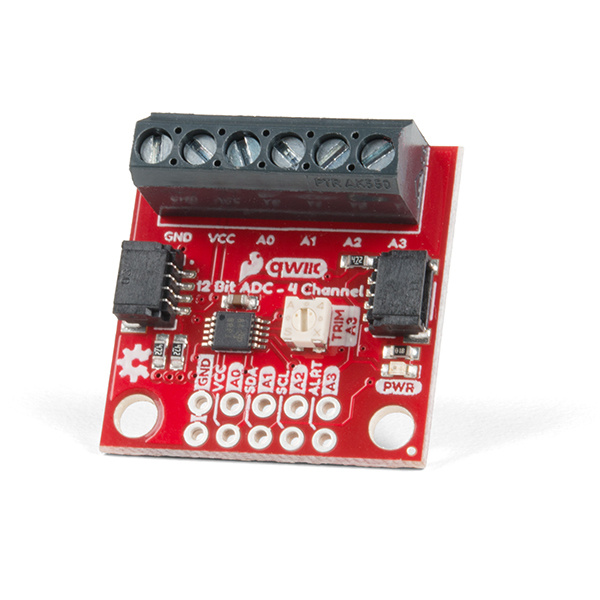

The SparkFun Qwiic (12-bit) ADC provides four channels of I2C controlled ADC input to your Qwiic enabled project. These four channels can be used as single-ended inputs, or in pairs for differential inputs. The ADS1015 uses its own internal voltage reference for measurements, but the ground and 3.3V power are also available on the pin outs for users.

Note: The maximum resolution of the converter is 12-bits in differential mode and 11-bits for single-ended inputs. Step sizes range from 125μV per count to 3mV per count depending on the full-scale range (FSR) setting.
