MicroMod Ethernet Function Board - W5500 Hookup Guide

Introduction

Integrate your MicroMod project into an Ethernet network including Power-over-Ethernet with the SparkFun MicroMod Ethernet Function Board - W5500. This Function Board uses the W5500 Ethernet control module from WIZnet and a DC/DC converter to configure a MicroMod assembly as a connected and powered device into an Ethernet network with Power-over-Ethernet (PoE) capabilities.

added to your cart!

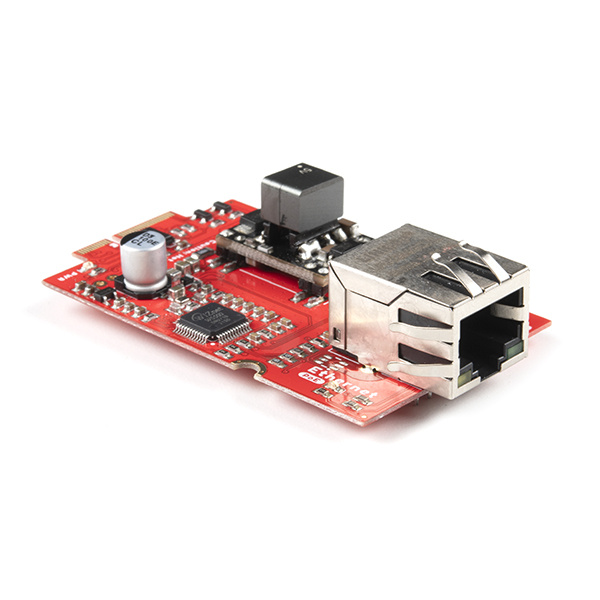

SparkFun MicroMod Ethernet Function Board - W5500

32 available COM-18708

Integrate your MicroMod project into an Ethernet network including Power-over-Ethernet with the SparkFun MicroMod Ethernet Fu…

$29.95

Favorited Favorite 1

Wish List

The W5500 is a TCI/IP embedded Ethernet controller from WIZnet that uses SPI and supports up to 80 MHz speeds. We designed this Function Board to use the IEEE802.3af Alternative B power scheme which uses the spare pairs for power delivery, isolated from the data pairs. In this guide we'll highlight the capabilities of the W5500 and demonstrate how to use the MicroMod Ethernet Function Board to create an Ethernet network that can also be used for PoE.

Required Materials

Following along with this tutorial requires a few items along with the MicroMod Ethernet Function Board. Depending on what you already have, you may not need all of the items listed below.

MicroMod Processor

All MicroMod systems require a Processor board to operate. SparkFun carries a variety of Processor boards suited for different applications. Select the Processor board that best suits your Ethernet projects' needs:

added to your cart!

SparkFun MicroMod Teensy Processor

In stock DEV-16402

This board leverages the awesome computing power of the NXP iMXRT1062 chip (ARM Cortex-M7) and pairs it with the M.2 MicroMod…

$21.50

7

Favorited Favorite 21

Wish List

added to your cart!

SparkFun MicroMod ESP32 Processor

In stock WRL-16781

This board combines Espressif's ESP32 with our M.2 connector interface to bring a power-packed processor board into our Micro…

$16.95

1

Favorited Favorite 9

Wish List

added to your cart!

SparkFun MicroMod SAMD51 Processor

21 available DEV-16791

With a 32-bit ARM Cortex-M4F MCU, the SparkFun MicroMod SAMD51 Processor Board is one powerful microcontroller packaged on a …

$18.95

1

Favorited Favorite 10

Wish List

added to your cart!

SparkFun MicroMod STM32 Processor

In stock DEV-17713

The SparkFun MicroMod STM32 Processor Board is ready to rock your MicroMod world with its ARM® Cortex®-M4 32-bit RISC core!

$16.50

Favorited Favorite 9

Wish List

Note: Currently the Artemis and nRF52840 do not have built in Ethernet libraries in their Arduino cores. An external Arduino Ethernet library may work but at this time Ethernet is not supported on those Processors.

MicroMod Main Board

MicroMod Function Boards require at least one Main Board to work.

SparkFun MicroMod Main Board - Single

Retired DEV-18575

The MicroMod Main Board is a specialized carrier board that allows you to interface a MicroMod Processor Board with a single …

Retired

Favorited Favorite 5

Wish List

SparkFun MicroMod Main Board - Double

Retired DEV-18576

The MicroMod Main Board is a specialized carrier board that allows you to interface a MicroMod Processor Board with up to two…

Retired

Favorited Favorite 4

Wish List

Peripheral Items

You'll also need a PoE power supply like a network hub or router, Ethernet cable, network hub/router or endpoint as well as a few other peripheral items to get your MicroMod Ethernet system up and running. If needed, add these items to your cart:

added to your cart!

Reversible USB A to C Cable - 2m

27 available CAB-15424

These 2m cables have minor modifications that allow them to be be plugged into their ports regardless of orientation on the U…

$8.95

1

Favorited Favorite 5

Wish List

added to your cart!

USB 3.1 Cable A to C - 3 Foot

In stock CAB-14743

USB C is fantastic. But until we have converted all our hubs, chargers, and ports over to USB C this is the cable you're goin…

$5.50

4

Favorited Favorite 11

Wish List

added to your cart!

CAT 6 Cable - 3ft

Only 10 left! CAB-08915

This 3ft Category 6 (CAT 6) Ethernet cable is the solution to your internet working needs. With a speed of up to 500MHz you c…

$2.10

Favorited Favorite 5

Wish List

Tools

Assembling MicroMod systems requires a Phillips head screwdriver.

added to your cart!

Pocket Screwdriver Set

In stock TOL-12891

What should every hacker have available to them? That's right, a screwdriver (you have to get into those cases somehow). What…

$4.50

5

Favorited Favorite 27

Wish List

added to your cart!

SparkFun Mini Screwdriver

In stock TOL-09146

This is just your basic reversible screwdriver - pocket sized! Both flat and phillips heads available. Comes with pin clip an…

$1.05

3

Favorited Favorite 13

Wish List

Recommended Reading

The MicroMod ecosystem is a unique way to allow users to customize their project to their needs. If you aren't familiar with the MicroMod system, click on the banner below for more information.

You may also want to read the tutorials below if you are not familiar with the concepts covered in them:

Hardware Overview

Let's take a closer look at the hardware on the Ethernet Function Board - W5500 and how it interacts with the rest of the MicroMod ecosystem.

WIZnet W5500 Ethernet Controller

The W5500 Ethernet Controller from WIZnet is a TCP/IP embedded Ethernet controller that uses SPI communication protocol to allow up to eight independent sockets operate simultaneously.

• TCP
• UDP
• ICMP
• IPv4
• ARP
• IGMP
• PPPoE

The W5500 SPI interface operates at up to 80MHz and supports fast SPI for high speed Ethernet communication. The chip also includes a Wake on Lan (WOL) operation and power down mode to help conserve power. The W5500 operates at 3.3V but has 5V-tolerant I/O. For detailed information on the W5500, refer to the datasheet.

The Function Board includes three solder jumpers connected to the three network mode selection pins to allow users to configure the W5500 network operation mode. By default, the board sets the W5500 to operates in 10/100Base-T with Auto-Negotiation enabled. Read on to the Solder Jumpers portion of this section or refer to the pin descriptions in the datasheet for more information on adjusting the operation mode.

Power

The Ethernet Function Board - W5500 features several power input options including PoE and USB (via the Main Board). By default, the board acts as a PoE Powered Device (PD), receiving voltage over the Ethernet connection using the IEEE802.3af Alternative B power scheme.

The Alternate B power scheme uses the spare pairs (pins 4/5 and 7/8) in the Ethernet cable for positive and negative DC voltage, keeping things simple if any troubleshooting is needed. The board includes a pair of PoE isolation jumpers that allows users to isolate these pins from the DC/DC converter input. When opened, the MicroMod assembly can receive power over USB, LiPo battery or through the DC/DC converter input PTH pins. The USB and LiPo power inputs are isolated from the PoE circuit.

DC/DC Converter Circuit

The board uses an Ag9905M Power-over-Ethernet (PoE) DC/DC converter to provide 5V from an Ethernet connection. For complete information on the Ag9905M, refer to the datasheet.

The Ag9905 accepts an input voltage between 36V and 57V but a voltage of 48V or greater is recommended on initial powerup to ensure the module functions properly. After power up, input voltage can be reduced to 36V if needed.

The Ag9905 provides 9 Watts of power for the MicroMod system and any peripheral devices connected to it (i.e. Qwiic breakouts, etc.). The 5V output from the converter is filtered to reduce noise for 5V circuits on the board and is also regulated down to 3.3V.

RJ45 Connector

The RJ45 connector on this function board includes embedded magnetics for PoE applications and is MagJack^®-Compatible.

The Function Board uses all pairs on the RJ45 connector by default as the PoE configuration uses the spare pair for power inputs. Users who do not wish to use PoE can isolate these pins for other use by opening the PoE Isolation Jumpers. Reminder, if the PoE pairs are disconnected, power must be supplied from another source, either USB, LiPo battery or via the DC/DC converter input PTH pins on the other side of the PoE Isolation Jumpers.

LEDs

The board has a pair of status LEDs indicating general power and PoE power as well as the pair of LEDs on the RJ45 connector for Link and Activity statuses.

Solder Jumpers

There are thirteen solder jumpers on the Function Board. The table below outlines their labels and functions:

MicroMod Function Board Pinout

This Function Board uses the following pins on a connected Processor Board:

• 3.3V & VCC
• Power Enable
• SPI - W5500 Communication
• I²C - EEPROM Communication
• D0 (Slot 0) / D1 (Slot 1) - W5500 Interrupt
• CS0 (Slot 0) / CS1 (Slot 1) - W5500 Chip Select (SPI)
• PWM0 (Slot 0) - PWM1 (Slot 1) W5500 Reset

For the complete MicroMod Pinout and pins used by this function board, take a look at the tables below:

• MicroMod Ethernet Function Board - W5500 Pinout Table
• MicroMod General Processor Pinout Table
• MicroMod General Pin Descriptions

Board Dimensions

The MicroMod Ethernet Function Board matches the MicroMod Function Board standard and measures 1.50" x 2.56" (38.1mm x 65.024mm).

Hardware Assembly

If you're not familiar with assembling boards using the MicroMod connection system, head over to the Getting Started with MicroMod tutorial for information on inserting and securing your MicroMod Processor and Function Boards to the Main Board:

PoE Assembly

After securing the Processor and Function Board to the Main Board, connect the MicroMod Main Board to your computer with a USB-C cable to program the Processor. Once programmed, connect the Function Board to your Ethernet hub (router, network switch, etc.) with an Ethernet cable connected to the RJ45 connector.

Software Installation

Processor Arduino Board Definitions and Driver

Make sure you go through the Hookup Guide for your chosen Processor Board to install the Arduino board definitions and any necessary drivers:

Main Board Example - Pin Connection Table

The table below helps show what pins the Function Board connects to depending on the slot it is connected to on a Main Board (Note: The Single Main Board connection is Slot 0):

Arduino Example

Now that our MicroMod system is fully assembled, we'll use a slightly modified version of the "Ethernet - Web Client" example included with Arduino to make sure everything is connected and working properly. This modified version simply updates the options for the SPI Chip Select pin to match those used on supported MicroMod Processor Boards:

language:c
void setup() {
  //Ethernet.init(CS); //SAMD51
  Ethernet.init(10); //Teensy
  //Ethernet.init(5); //ESP32
  //Ethernet.init(A4); //STM32

Open the Arduino IDE and either copy the code below or navigate to the example by going to File > Examples > Ethernet > Web Client. Reminder, if you open the default example in Arduino, make sure to set the correct Chip Select pin for the Processor Board used as listed above. Upload the code and open the serial monitor with the baud set to 115200 and you should see the example initialize the W5500 and ping Google.com.

language:c
/*
  Web client
 This sketch connects to a website (http://www.google.com)
 using an Arduino Wiznet Ethernet shield.
 Circuit:
 * Ethernet shield attached to pins 10, 11, 12, 13
 created 18 Dec 2009
 by David A. Mellis
 modified 9 Apr 2012
 by Tom Igoe, based on work by Adrian McEwen
 */

#include <SPI.h>
#include <Ethernet.h>

// Enter a MAC address for your controller below.
// Newer Ethernet shields have a MAC address printed on a sticker on the shield
byte mac[] = { 0xDE, 0xAD, 0xBE, 0xEF, 0xFE, 0xED };

// if you don't want to use DNS (and reduce your sketch size)
// use the numeric IP instead of the name for the server:
//IPAddress server(74,125,232,128);  // numeric IP for Google (no DNS)
char server[] = "www.google.com";    // name address for Google (using DNS)

// Set the static IP address to use if the DHCP fails to assign
IPAddress ip(192, 168, 0, 177);
IPAddress myDns(192, 168, 0, 1);

// Initialize the Ethernet client library
// with the IP address and port of the server
// that you want to connect to (port 80 is default for HTTP):
EthernetClient client;

// Variables to measure the speed
unsigned long beginMicros, endMicros;
unsigned long byteCount = 0;
bool printWebData = false;  // set to false for better speed measurement

void setup() {
  //Ethernet.init(CS); //SAMD51
  Ethernet.init(10); //Teensy
  //Ethernet.init(5); //ESP32
  //Ethernet.init(A4); //STM32

  Serial.begin(115200);

  delay(4000);

  // start the Ethernet connection:
  Serial.println("Initialize Ethernet with DHCP:");
  if (Ethernet.begin(mac) == 0) {
    Serial.println("Failed to configure Ethernet using DHCP");
    // Check for Ethernet hardware present
    if (Ethernet.hardwareStatus() == EthernetNoHardware) {
      Serial.println("Ethernet shield was not found.  Sorry, can't run without hardware. :(");
      while (true) {
        delay(1000);
        Serial.println("Not detected");
        delay(1); // do nothing, no point running without Ethernet hardware
      }
    }
    if (Ethernet.linkStatus() == LinkOFF) {
      Serial.println("Ethernet cable is not connected.");
    }
    // try to congifure using IP address instead of DHCP:
    Ethernet.begin(mac, ip, myDns);
  } else {
    Serial.print("  DHCP assigned IP ");
    Serial.println(Ethernet.localIP());
  }
  // give the Ethernet shield a second to initialize:
  delay(1000);
  Serial.print("connecting to ");
  Serial.print(server);
  Serial.println("...");

  // if you get a connection, report back via serial:
  if (client.connect(server, 80)) {
    Serial.print("connected to ");
    Serial.println(client.remoteIP());
    // Make a HTTP request:
    client.println("GET /search?q=arduino HTTP/1.1");
    client.println("Host: www.google.com");
    client.println("Connection: close");
    client.println();
  } else {
    // if you didn't get a connection to the server:
    Serial.println("connection failed");
  }
  beginMicros = micros();
}

void loop() {
  // if there are incoming bytes available
  // from the server, read them and print them:
  int len = client.available();
  if (len > 0) {
//    byte buffer[80];
    byte buffer[512 * 4];
    if (len > sizeof(buffer)) len = sizeof(buffer);
    client.read(buffer, len);
    if (printWebData) {
      Serial.write(buffer, len); // show in the serial monitor (slows some boards)
    }
    byteCount = byteCount + len;
  }

  // if the server's disconnected, stop the client:
  if (!client.connected()) {
    endMicros = micros();
    Serial.println();
    Serial.println("disconnecting.");
    client.stop();
    Serial.print("Received ");
    Serial.print(byteCount);
    Serial.print(" bytes in ");
    float seconds = (float)(endMicros - beginMicros) / 1000000.0;
    Serial.print(seconds, 4);
    float rate = (float)byteCount / seconds / 1000.0;
    Serial.print(", rate = ");
    Serial.print(rate);
    Serial.print(" kbytes/second");
    Serial.println();

    // do nothing forevermore:
    while (true) {
      delay(1);
    }
  }
}

Troubleshooting

Artemis and nRF52840 Processor Support

Reminder, the Artemis and nRF52840 currently do not have built in Ethernet libraries in their Arduino cores. An external Arduino Ethernet library may work with these Processors but at this time Ethernet is not supported. We will update the tutorial in the future if Ethernet support is added to these cores.

General Troubleshooting

Resources and Going Further

That'll a wrap for this tutorial. By now your MicroMod Ethernet network should be up and running. Take a look at the resources below for more information about the MicroMod Ethernet Function Board - WIZnet W5500:

• Schematic (PDF)
• Eagle Files (ZIP)
• Board Dimensions (PNG)
• W5500 Datasheet
• Ag9900M Datasheet (Ag9905M is used)
• RJ45 Connector Datasheet
• Hardware GitHub Repository
• MicroMod Landing Page

For more information about the SparkFun MicroMod system, take a look here:
