SparkFun gator:UV Hookup Guide

Pages
Contributors: santaimpersonator, Englandsaurus
Favorited Favorite 2

Introduction

Do you have a science experiment involving weather or UV light exposure?

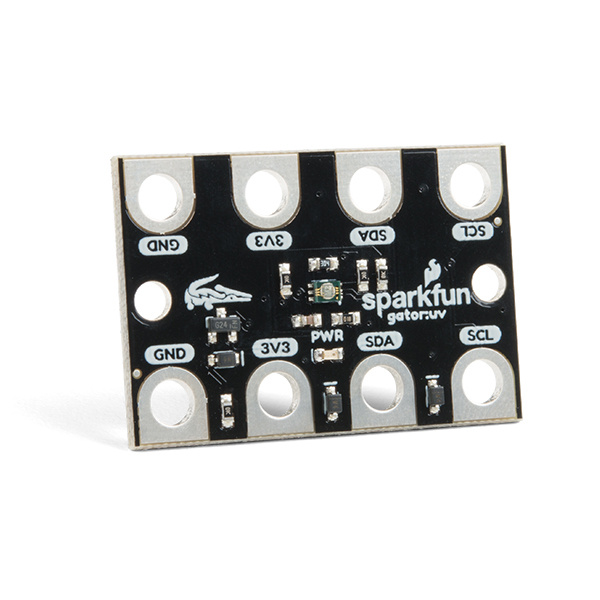

SparkFun gator:UV - micro:bit Accessory Board

SEN-15273
Retired

The gator:UV is the perfect tool to monitor the UV exposure in your next experiment. With the VEML6070, the gator:UV can easily be used to measure the levels of UVA (320-400 nm) radiation. This tutorial will show you how to get started using this UV sensor with the gator:bit (v2) in the micro:bit development environment.

Required Materials

To get started, you'll need a micro:bit to control everything. You can purchase one individually on in a kit.

micro:bit Board

DEV-14208
10 Retired

micro:bit Go Bundle

DEV-14336
18 Retired

SparkFun Inventor's Kit for micro:bit

KIT-15228
2 Retired

To easily use the gator board ecosystem, a gator:bit (v2) will help breakout the necessary pins and you will also need alligator and/or banana cables to connect the gator:bit to the gator:UV.

Alligator Test Leads - Multicolored (10 Pack)

Alligator Test Leads - Multicolored (10 Pack)

PRT-12978
$3.50
4
SparkFun gator:bit v2.0 - micro:bit Carrier Board

SparkFun gator:bit v2.0 - micro:bit Carrier Board

DEV-15162
$21.50
2
Banana to Banana Cable - Right Angle

Banana to Banana Cable - Right Angle

CAB-15368
$4.95 $4.46
1

(*These banana cables have a special diameter on the attachment points designed specifically for use with the micro:bit ecosystem. They may or may not be compatible with the banana cables used on your test equipment.)

You may already have some of these materials, so feel free to modify your cart as necessary.

Suggested Reading

The gator:UV sensor is pretty straight forward to use in application. However, you may find the following concepts useful along the way.

Light

Light is a useful tool for the electrical engineer. Understanding how light relates to electronics is a fundamental skill for many projects.

Logic Levels

Learn the difference between 3.3V and 5V devices and logic levels.

I2C

An introduction to I2C, one of the main embedded communications protocols in use today.

micro:climate Kit Experiment Guide

A weather station kit that is built on top of the inexpensive, easy-to-use micro:bit and Microsoft MakeCode.

If you aren't familiar with the micro:bit, we recommend reading here for an overview.
